解决 Minecraft 渲染难以学习的终极方案。

---

简介

与我另一个项目 ClickCrystals Script 不同，ImproperUI Script 要求你具备以下基础知识：

• 基本 CSS 属性及其工作原理
• 基本 HTML 结构
• Java

ImproperUI 的语法深受 CSS（层叠样式表）的启发，但并非完全相同。

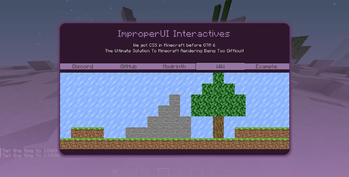

下面是一个包含可拖动和可滚动元素的交互界面截图，作为该模组的主页。 该界面是使用 ImproperUI Script 编写的：

最新更改

版本：0.0.6-BETA

新增：
  - 添加了 ConfigReader
  - 添加了 ImproperUIAPI.getConfigReader()

补丁：
  - 修复了配置文件整数参数无法正确解析的问题

将 ImproperUI 添加到你的项目

要添加 ImproperUI，你需要下载其 jar 文件，然后手动将其添加到 gradle 中。 我不想创建在线仓库，也不想让它成为一个独立的模组。哎呀。

这里有一个示例，展示了如何在模组中使用 ImproperUI！

第 1 步

下载 jar 文件并将其添加到你的项目文件中，同时作为依赖项添加到 build.gradle 中。

依赖项 {
    compileOnly files("libs/ImproperUI-theVersionYouWant.jar")
}

第 2 步

将下载的 jar 文件作为模组添加到你的 mods 文件夹中！你必须将其用作库！

第 3 步（最后一步）

初始化 API。在此部分，你调用 ImproperUIAPI 上的 init() 函数，然后提供：

• 你自己模组的 modId
• 你自己模组的 主类模组初始化器
• 最后是你自己模组 src/main/resources/ 文件夹内的一系列脚本路径。
• 按照惯例，你应该在你自己模组的 src/main/resources/assets/YOURMODID/improperui/ 文件夹内创建脚本

public class ImproperUI implements ModInitializer {

    @Override
    public void onInitialize() {
        ImproperUIAPI.init("improperui", ImproperUI.class,
                "assets/improperui/improperui/what.ui",
                "assets/improperui/improperui/screen.ui"
        );
    }
}

public class YourModInitializer implements ModInitializer {

    @Override
    public void onInitialize() {
        ImproperUIAPI.init("yourModId", YourModInitializer.class,
                "assets/yourModId/improperui/yourscreen1.ui",
                "assets/yourModId/improperui/yourscreen2.ui"
        );
    }
}

请注意，当你实际尝试解析或运行这些脚本时，你引用的是脚本文件的名称，而不是此处声明的路径！

事件

要监听你脚本中声明的事件，创建一个实现了 CallbackListener 的新类。

创建一个方法，该方法需要：

1. 带有 CallbackHandler 注解
2. 参数包含你想要监听的事件类型
3. 方法名称应与脚本中声明的事件匹配

public class CustomCallbacks implements CallbackListener {

    @CallbackHandler
    public void sendHelloWorld(MouseEvent e) {
        if (e.input.isDown())
            ChatUtils.sendMessage("Hello World");
    }
}

在你的脚本中，事件应如下所示：

元素 {
    点击事件: sendHelloWorld
}

最后，当你声明一个 ImproperUIPanel 界面时，将回调注册到你的面板：

public void openScreen() {
    ImproperUIPanel panel = new ImproperUIPanel();
    panel.registerCallback(new CustomCallback());
    // 在此解析脚本并添加子元素
    // panel.addChild()
    MinecraftClient.getInstance().setScreen(panel);
}

如果你正在运行脚本，请在创建参数中提供你的自定义回调：

public void openScreen() {
    ImproperUIAPI.parseAndRunFile("yourModId", "testing.ui", new CustomCallback() /* 和更多... */);
}

辅助方法

辅助方法：
  - ImproperUIPanel.collect() // 所有元素和组件及其子元素的列表
  - ImproperUIPanel.collectOrdered() // 按 z-index 排序的所有元素和组件及其子元素的列表
  - ImproperUIPanel.collectById() // 具有指定 ID 的元素列表
  - ImproperUIPanel.collectByClassAttribute() // 具有指定 class 属性的元素列表
  - ImproperUIPanel.collectById() // 具有指定 ID 的第一个元素
  - ImproperUIPanel.collectByClassAttribute() // 具有指定 class 属性的第一个元素

API：
  - ImproperUIAPI.parse() // 解析脚本并返回所有解析后的结果元素
  - ImproperUIAPI.parseAndRunFile() // 解析 init() 中注册的脚本文件名称（而非路径）并使用这些元素打开界面
  - ImproperUIAPI.parseAndRunScript() // 解析 init() 中注册的脚本并使用这些元素打开界面
  - ImproperUIAPI.reload() // 重新加载 API
  - ImproperUIAPI.reInit() // 使用可能不同的 Mod ID 重新初始化 API

配置键

配置键由三部分组成：modId, confileFile, propertyName。它们用于保存配置值，例如，你的滑块和复选框的值。

要在脚本中使用配置键，只需输入所有三个部分，不能有空格，并用冒号 (:) 分隔。 然后将该字符串用作元素的属性类：

滑块 #someId -yourModId:config.properties:testing-slider-value -someAnotherAttributeClass {

}

这将创建一个滑块，将值设置并保存到配置中。

标签

元素标签	动态悬停、选择、焦点	支持子元素	支持配置	别名	特定属性：类型
元素 (element)	✅	✅	✅	e, div
复选框 (checkbox)	✅	❌	✅		active:boolean
单选按钮 (radio)	✅	❌	✅		active:boolean
按钮 (button)	✅	❌	❌
链接 (link)	✅	❌	❌	a	href:string
滑块 (slider)	❌	❌	✅		min:double max:double value:double range:double,double decimal-places:integer
输入框 (input)	❌	❌	✅	textbox	pattern:quote placeholder:quote
文本域 (textfield)	❌	❌	✅	textarea
标签 (label)	✅	❌	❌	textlabel
标题1 (header1)	✅	❌	❌	h1
标题2 (header2)	✅	❌	❌	h2
标题3 (header3)	✅	❌	❌	h3
标题4 (header4)	✅	❌	❌	h4
标题5 (header5)	✅	❌	❌	h5
标题6 (header6)	✅	❌	❌	h6
可定位元素 (positionable)	✅	✅	✅

这个项目永远不会完成

所以快来提交你的创意！ 给我们加星以获取最新有趣更新/拉取请求！

喜欢那个主界面吗？这是它的脚本！

div #background-gradient {
    size: 100%
    margin-top: 100%
    shadow-distance: 50%
    shadow-color: #9775a6
}

div #display {
    size: 420 240
    center: both
    border-radius: 10
    border-thickness: 1
    border-color: #412752
    background-color: #2d162c
    shadow-distance: 5
    shadow-color: #683a68

    child-align: grid
    grid-columns: 1

    div #title {
        inner-text: "ImproperUI 交互演示"
        size: 100% 10
        text-align: center
        text-scale: 1.69
        text-color: #9775a6
        background-color: none
        margin-top: 15
    }

    div #motto {
        inner-text: "我们在 GTA 6 之前就在 Minecraft 中实现了 CSS"
        size: 100% 10
        text-align: center
        text-scale: 0.8
        background-color: none
        margin-top: 10
    }
    div #motto {
        inner-text: "解决 Minecraft 渲染过于困难的终极方案"
        size: 100% 10
        text-align: center
        text-scale: 0.8
        background-color: none
        margin-bottom: 10
    }

    div #navbar {
        size: 100% 15
        margin-top: 10
        background-color: none

        child-align: grid
        grid-columns: 100

        button #discord {
            inner-text: "Discord"
            background-color: #9775a6
            border-radius: 0
            margin: 0
            width: 20%
            padding-left: 0
            padding-right: 0

            on-click: openDiscord

            hovered => { padding: 3; border-thickness: 0; border-radius: 2; shadow-distance: 2; }
        }
        button #github {
            inner-text: "GitHub"
            background-color: #9775a6
            border-radius: 0
            margin: 0
            width: 20%
            padding-left: 0
            padding-right: 0

            on-click: openGithub

            hovered => { padding: 3; border-thickness: 0; border-radius: 2; shadow-distance: 2; }
        }
        button #modrinth {
            inner-text: "Modrinth"
            background-color: #9775a6
            border-radius: 0
            margin: 0
            width: 20%
            padding-left: 0
            padding-right: 0

            on-click: openModrinth

            hovered => { padding: 3; border-thickness: 0; border-radius: 2; shadow-distance: 2; }
        }
        button #wiki {
            inner-text: "Wiki"
            background-color: #9775a6
            border-radius: 0
            margin: 0
            width: 20%
            padding-left: 0
            padding-right: 0

            on-click: openWiki

            hovered => { padding: 3; border-thickness: 0; border-radius: 2; shadow-distance: 2; }
        }
        button #wiki {
            inner-text: "示例"
            background-color: #9775a6
            border-radius: 0
            margin: 0
            width: 20%
            padding-left: 0
            padding-right: 0

            on-click: openExampleScreen

            hovered => { padding: 3; border-thickness: 0; border-radius: 2; shadow-distance: 2; }
        }
    }

    div #mini-world {
        size: 100% 140
        background-color: none

        child-align: grid
        grid-columns: 21

        scrollable: true
        background-clip: padding

        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }

        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }

        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/stone.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }

        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/stone.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/stone.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/oak_leaves.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } div #greenshade { size: 100%; background-color: green; opacity: 0.5; click-through: true; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }

        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/stone.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/stone.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/stone.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/stone.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/oak_log.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }

        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/grass_block_side.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/grass_block_side.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/grass_block_side.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size: 20; draggable: true; hovered => { border-thickness: 1; border-color: white; } }
        div #block { background-image: textures/block/ice.png; size
